The high voltage fuse links are suitable for 10~33kV outdoor Cutout Fuses. The fuse element adopts alloy of low-melting point.
The fuse tail fitted with button washer is made of gal- vanized copper strand with corruption-proof coating. The fuse link is fixed with auxillary arc-extinguishing tube.
It can reliably break fault current of overload or short-circuit.
Production Standard: ANSI C37, IEC282

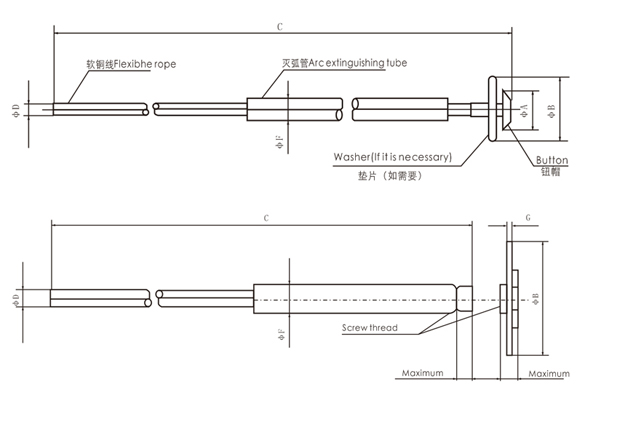

| Rated current（A) | Dimensions(mm) | ||||
| A | B | C | D | F | |
| 1 to 25 | 12.5±0.2 | 19.0±0.2 | Note1 | 2.0 | 6.5 |
| 30 to 40 | 12.5±0.2 | 19.0±0.2 | Note1 | 3.0 | 8.0 |
| 50 to 100 | 19.0±0.3 | Not applicable | Note1 | 5.0 | 10.0 |
| 140 to 200 | 19.0±0.3 | Not applicable | Note1 | 7.0 | 12.0 |
